M133 EDM Wire Guide For Mitsubishi Wire Cutting Machine EDM Diamond Wire Guide
MITSUBISHI _compress.pdf
Lower Wire Guide
Dia : 0.105mm; 0.155mm;0.205mm, 0.21mm; 0.22mm; 0.255mm; 0.26mm; 0.305mm; 0.31mm;
Original Code : X056C426G54 X056C412G53 X056C412G52 X052B243G64 X052B243G61 X052B243G65 X052B243G62
Machine Model: DWC-F1,G,H,H`,CX,SX,FX,FA,QA,RA
M133 Wire Guide For Mitsubishi machine use (Made in China)
M132 Upper Diamond Die Guide Mitsubishi 34.031.014 , DA76400, DC94100, X053C834G51, X056C412G55, ID=0.10MM
M132 Upper Diamond Die Guide Mitsubishi 34.031.015 , DA76500, X053C834G52, X055C129G59,ID=0.15MM
M132 Upper Diamond Die Guide Mitsubishi 34.031.036 , D631000, DP80800, X055C538G54, X056C833G54, X053C834G52 ID=0.20MM
M132 Upper Diamond Die Guide Mitsubishi X056C833G51 ID=0.21MM
M132 Upper Diamond Die Guide Mitsubishi 34.031.037 , D631100, DR06000, X055C538G55, X053C834G54 , X056C833G55 ID=0.25MM
M132 Upper Diamond Die Guide Mitsubishi X056C833G52 ID=0.26MM
M132 Upper Diamond Die Guide Mitsubishi 34.031.038 , D631200, DR05700, X055C538G56, X056C833G56, X055C129G53 ID=0.30MM
M132 Upper Diamond Die Guide Mitsubishi X053C834G56 , X056C833G53 ID=0.31MM
M132 Upper Diamond Die Guide Mitsubishi X053C994G52 ID=0.33MM
M133 Lower Diamond Die Guide Mitsubishi 34.032.015 , DA76000, X052B243G63, X052B346G51 ID=0.10MM
M133 Lower Diamond Die Guide Mitsubishi 34.032.013 , DA76100, X052B243G64 ID=0.15MM
M133 Lower Diamond Die Guide Mitsubishi 34.032.029 , D630000, DP77900, X052B507G54, X052B387G54, X052B243G61 ID=0.20MM
M133 Lower Diamond Die Guide Mitsubishi X052B387G51 ID=0.21MM
M133 Lower Diamond Die Guide Mitsubishi 34.032.030 , D630100, X052B243G65 ,X052B507G55, X052B387G55 ID=0.25MM
M133 Lower Diamond Die Guide Mitsubishi X052B387G52 ID=0.26MM
M133 Lower Diamond Die Guide Mitsubishi 34.032.031 , D630200, DR05900, X052B507G56, X052B387G56 ID=0.30MM
M133 Lower Diamond Die Guide Mitsubishi X052B243G62 , X052B387G53 ID=0.31MM
Details:
| Item No. | OEM Code | Size (mm) | Application (details) |
| M133 | X056C426G54 X056C412G53 X056C412G52 X052B243G64 X052B243G61 X052B243G65 X052B243G62 | 0.105mm 0.155mm 0.205mm 0.255mm 0.305mm | Lower Wire Guide
DWC-HA,SA,SB,SZ,CX,SX,FX,QA,RA(AF2,AF3)
FA,PA,PX(AT) |

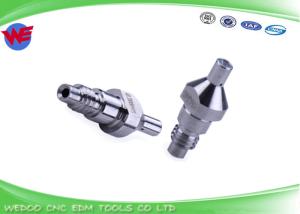

Photo show
Feature of Mitsubishi EDM Diamond Wire Guides
1. Using high quality raw materials of diamond (1mm thickness instead of 0.8mm thickness), ceramic , stainless steel
2. Produce by exprienced technician and engineers with Sophisticated machine equipment
3. High precision wire guide, Roundness and radius is tested by video measuring machine, tolerance
-0, +0.02mm
4. Competitive price , and large quantity wire guide in stock
5. Many size of EDM Wire Guides are available
6. Long lifetime , can be used 4 to 7 months
7. Easy to assembly ,and high precision on cutting
8. Special size ,it is available to custpmized made
If any inquiry feel free to contact us
