23EC090A705 V-guide pulley for lower head For use on: W32FB. W53FB (R-guide system) Uj series (V-guide system)

MAKINO-WEDOO .pdf

Upper and Lower Sapphire wire guide

Original code: 23EC090A705

For model: Makino W32FB. W53FB

Details:

Feature of Makino EDM Wire Guides

1. Using high quality raw materials of diamond

2. Produce by exprienced technician and engineers with Sophisticated machine equipment

3.High precision wire guide, Roundness and radius is tested by video measuring machine, tolerance

-0, +0.02mm

4. Long lifetime , able to use 4 to 7 months

5. Easy to assembly ,and high precision on cutting

6. Competitive price , and large quantity wire guide in stock

Our main products :

* EDM Spare parts : Wire Guide ,nozzles, roller ,power feed contact ,belt ,guide base , discharge cable…

* EDM Consumables: Brass wire , moly wire , JR3A ,Ion exchange resin ,kc-12

* EDM Water Filters

* EDM Drilling Parts : ceramic pipe guide ,ruby pipe guide , rubber seal , drill chuck

* EDM Copper / Brass tube : sighle hole ,double hole , multi hole electrode tube

* EDM Copper tappers

* High speed wire cutting EDM Parts :guide pully , pully assembly , bearing ....

* Jig tools , jig holders

water nozzle

edm carbide

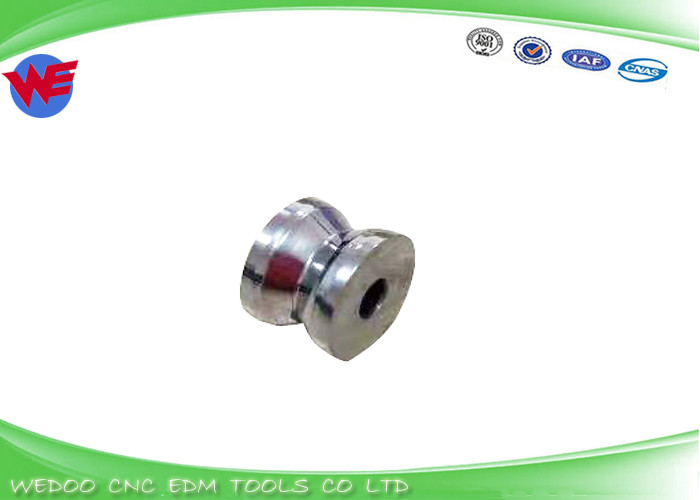

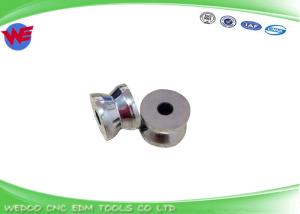

Makino EDM Spare Parts Consumables 23EC090A705 Pulley V - Guide Head Images
